shandongrongxu
| Quantity: | |
|---|---|
| Item | Details | Item | Details |
| Core Component | HP | Core Selling Point | High Productivity |
| Mechanical Test Report | Unavailable | Video Inspection | Available |
| Warranty Period | 1 Year | Brand | Shandong Rongxu |
| Weight (KG) | 200 | Place of Origin | Shandong, China |
| Type | Agricultural Machinery | Application | Agriculture |
| Product Name | Log Fork | Product Name 1 | Hay Grabber |
| Product Name 2 | Hanging Basket | Product Name 3 | Rock Bucket |
| Product Name 4 | Snowboard | Product Name 5 | Manure Fork |
| Item | Details | |
| Packaging Details | Iron Frame | |
| Sales Unit | Single Item | |
| Quantity (sets) | 1 | >1 |
| US Eastern Time (Days) | 15 | To be determined |
| Customization Options: | ||
| Custom Logo: +US$2/sets (Minimum Order Quantity: 1 set) | ||
| Custom Packaging: +US$70/sets (Minimum Order Quantity: 1 set) | ||
| Log Fork | ||
| This product needs to be used together with the front hydraulic system of a tractor. | ||
| Model | DT04 | DT06 |
| Dimensions (L × W × H) | 1300×1130×600mm | 1300×1230×700mm |
| Structural Weight | 130 kg | 160 kg |
| Bracket Width | 113 cm | 123 cm |
| Rated Load (KG) | 400 | 600 |

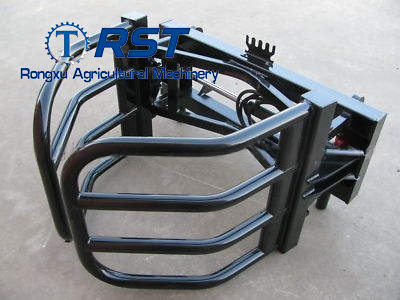

| Hay Grabber | |||
| Model | DK05 | DK10 | DK12 |
| Grab Diameter (cm) | 50-120 cm | 60-160 cm | 90-210 cm |
| Rated Bucket Capacity (kg) | 400 kg | 750 kg | 1250 kg |
| Grip Diameter | 10-80 cm | 15-95 cm | 40-135 cm |
| Weight (kg) | 180 kg | 220 kg | 300 kg |

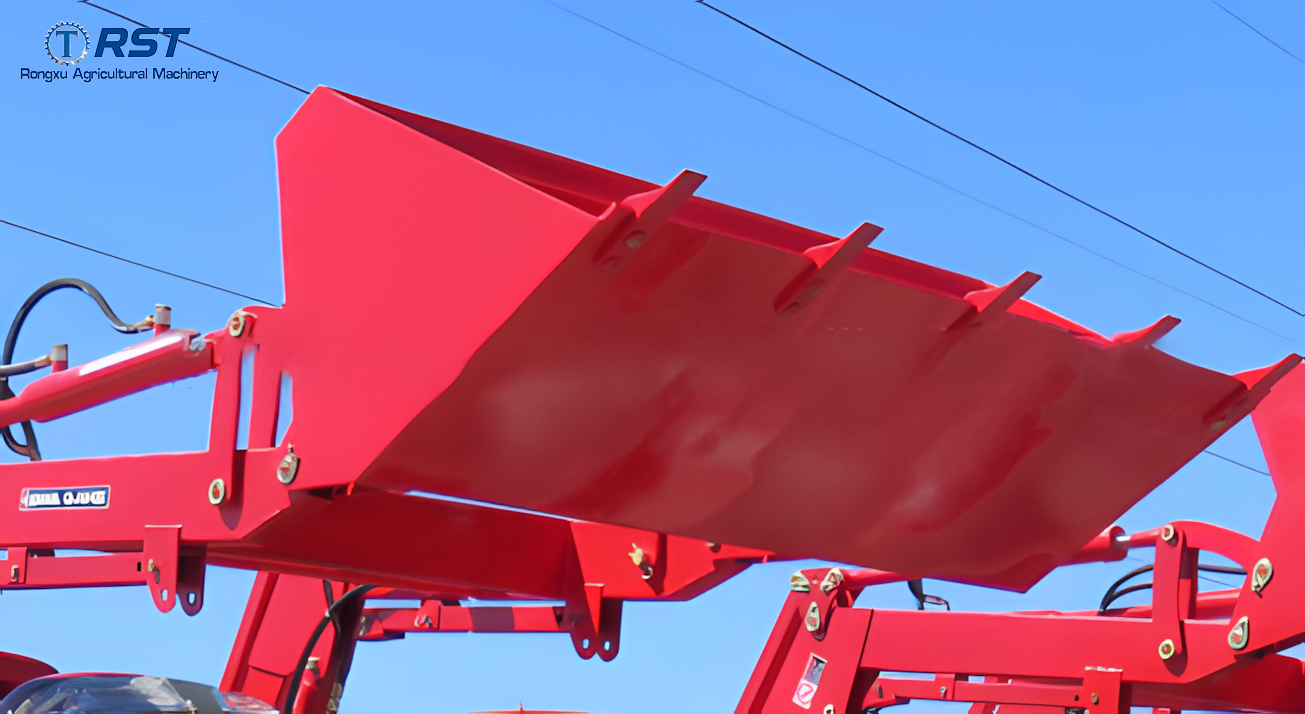

| Model | TZ-3 Front-End Loader | TZ-4 Front-End Loader | TZ-8 Front-End Loader | TZ-10 Front-End Loader |
| Overall Dimensions (mm) | 4100×1600×1580 | 4100×1600×1580 | 4900×1739×2494 | 4900×1739×2494 |
| Power (HP) | 25—45 | 40—50 | 50-80 | 80 - 100 |
| Maximum Tipping Height (mm) | 1800 | 2000 | 2200 | 2400 |
| Maximum Dumping Distance (mm) | 900 | 900 | 960 | 1000 |
| Bucket Rotation Angle (°) | 420 | 420 | 420 | 420 |
| Maximum Unloading Angle (°) | 470 | 470 | 160 | 160 |
| Maximum Scraping Depth (mm) | 100 | 140 | 460 | 460 |
| Pivot Pin Lift Time | 7 | 7 | 8 | 8 |
| Lowering Time | 3.5 | 3.5 | 4 | 4 |
| Bucket Capacity (m³) | 0.2 | 0.23 | 0.43 | 0.6 |
| Bucket Load Capacity | 200-400kg | 400-600kg | 600-800kg | 600-800kg |
| Drill Barrel Diameter | 1500 mm | 1600 mm | 1800 mm | 2000, 2100 mm |

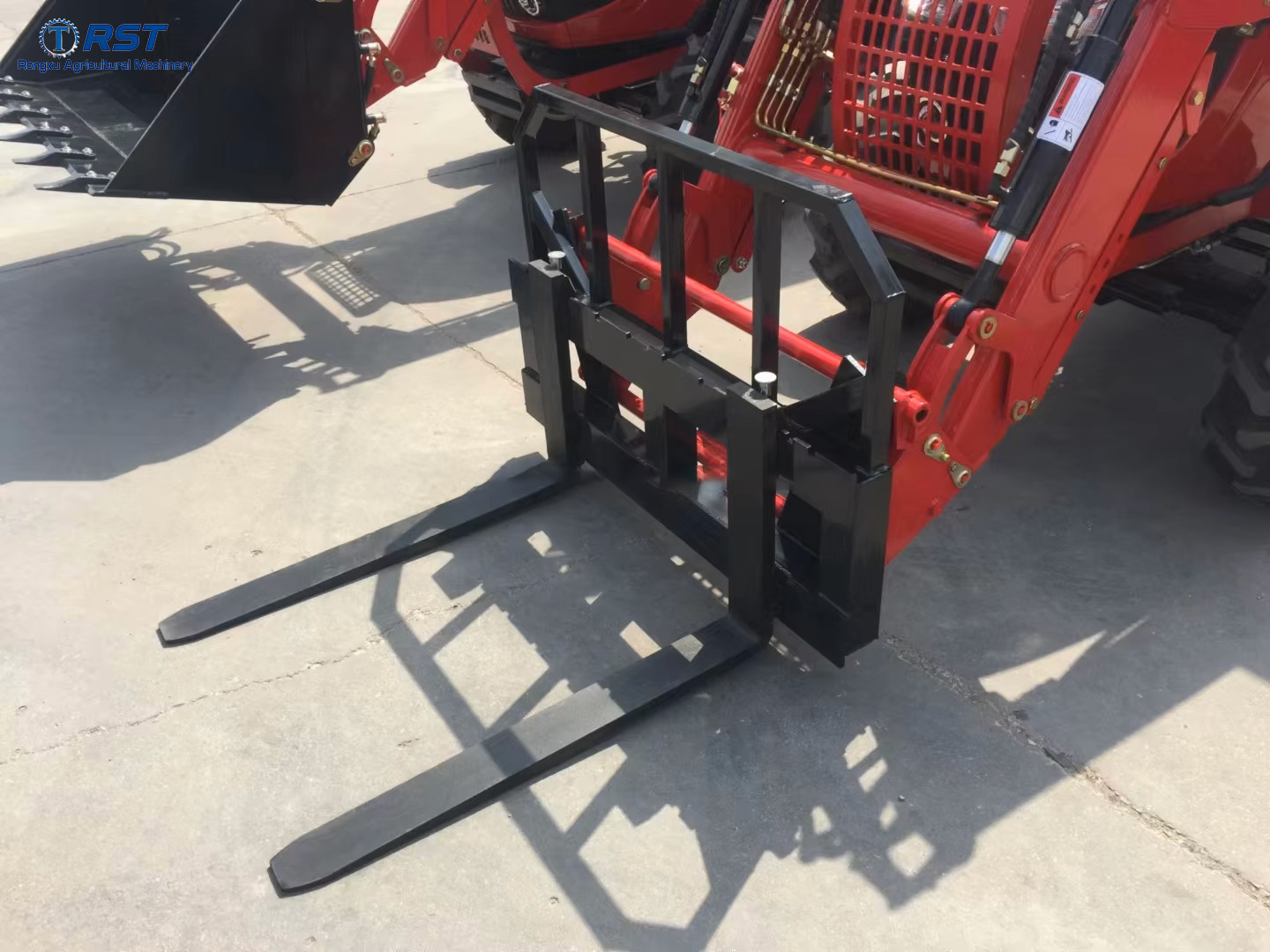

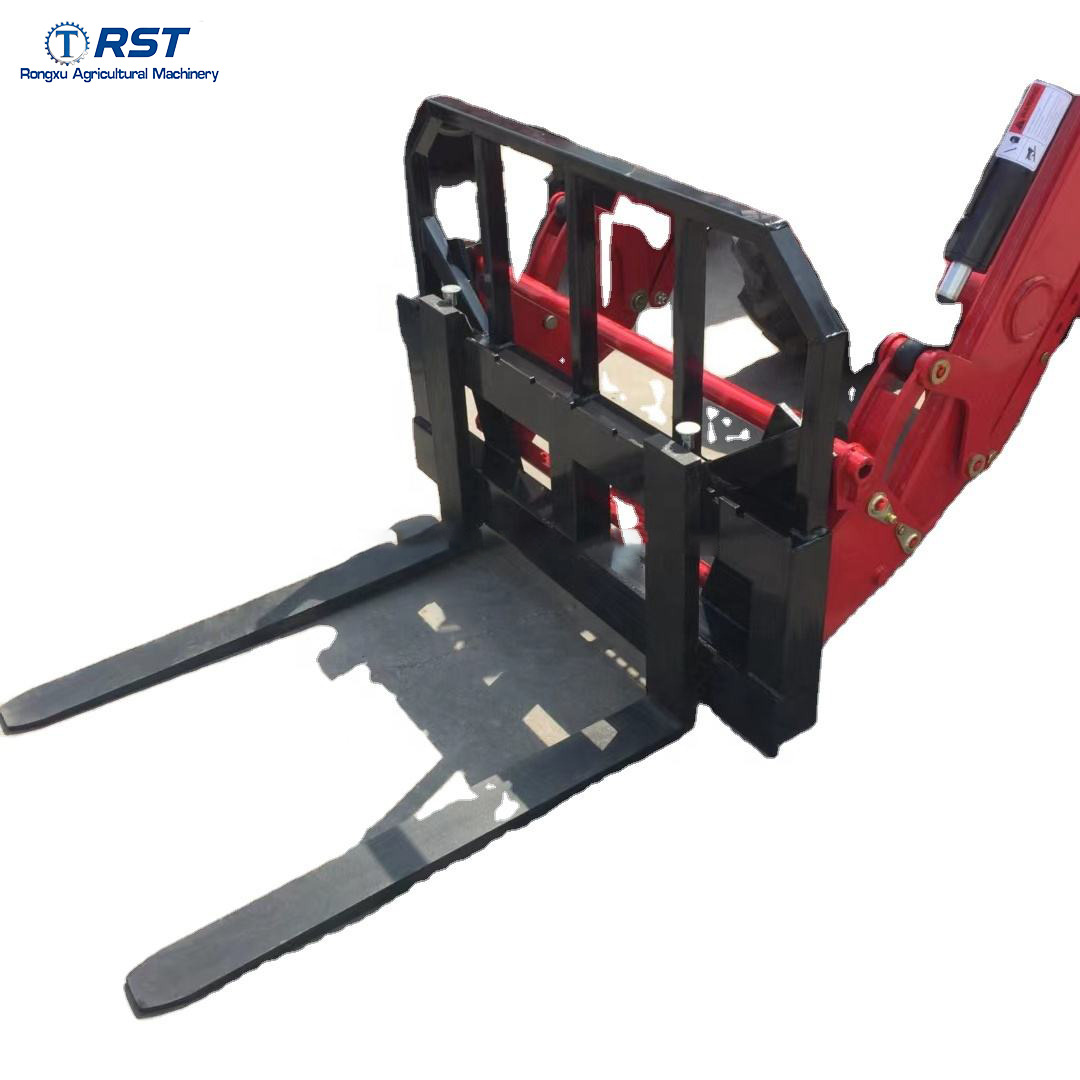

| Model | SF150 | SF180 |
| Dimensions (L × W × H) | 1500×1000×600 mm | 1800×1000×600 mm |
| Structural Weight | 250 kg | 340 kg |
| Bracket Width | 150 cm | 180 cm |
| Rated Load (KG) | 400 | 600 |

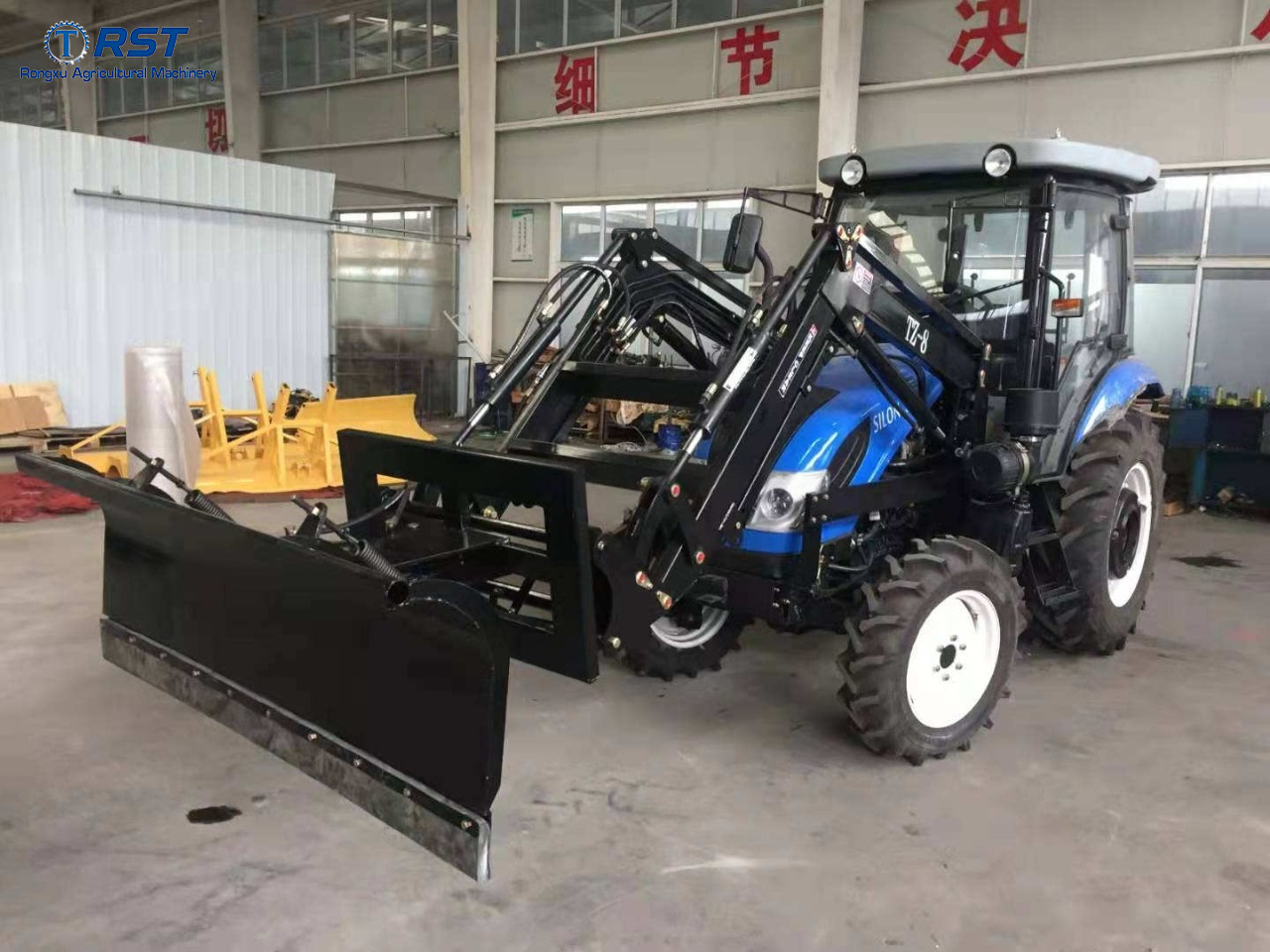

| Snowboard (Bulldozer Blade Lifter) Specification Table | ||||||
| Bulldozer Blade Lifter Model | RST150 | RST165 | RST180 | RST210 | RST230 | RST260 |
| Matching Power (kW) | (20~40) | (40~60) | (60~80) | (80~110) | (100~130) | (120~150) |
| Total Width (mm) | 1500 | 1650 | 1800 | 2100 | 2300 | 2600 |
| Section Height/Overall Height (mm) | 445 | 445 | 445 | 445 | 550 | 550 |
| Working Width (mm) | 1500 | 1650 | 1800 | 2100 | 2300 | 2600 |
| Blade/Base/Blade Angle (°) | 0/0, | 0/0, | 0/0, | 0/0, | 0/0, | 0/0, |
| Shoveling/Dumping Angle (°) | 60 | 60 | 60 | 60 | 60 | 60 |
| Weight (kg) | 280 | 320 | 360 | 400 | 550 | 620 |

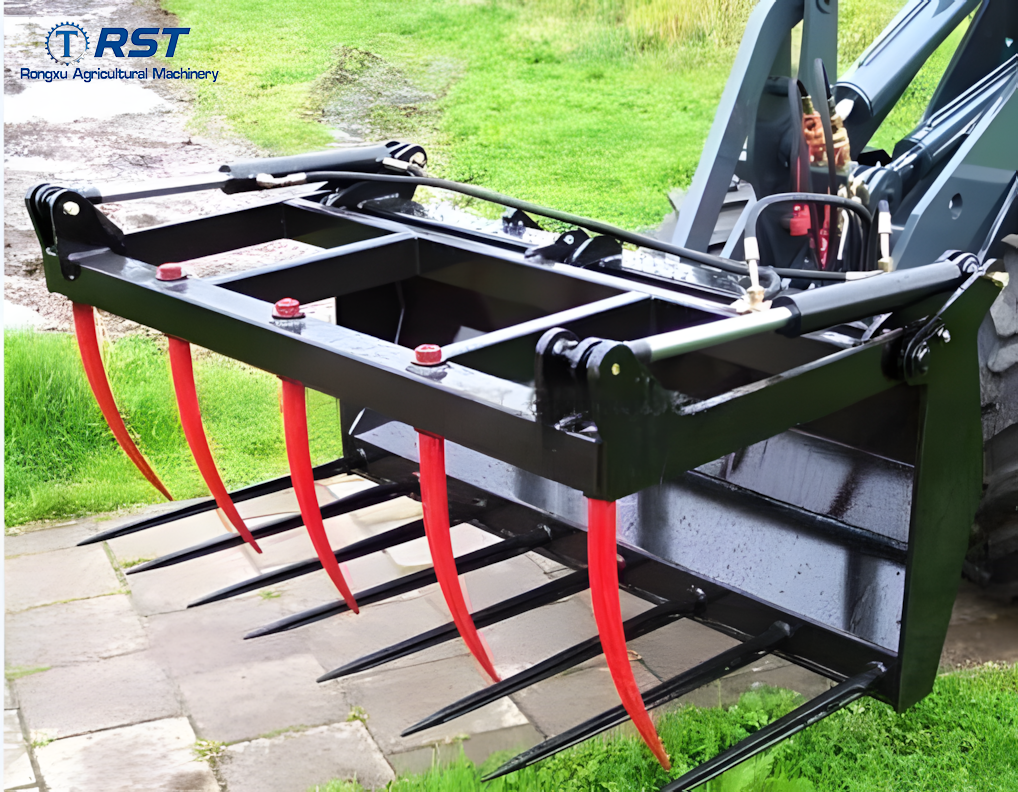

| Manure Fork Specification Sheet | |
| Item | Value |
| Warranty | 1 Year |
| Applicable Industries | Hotel, Farm, Home Use, Others |
| Weight (kg) | 200 |
| Showroom Location | None |
| Pre-shipment Video Inspection | Provided |
| Mechanical Test Report | Unavailable |
| Marketing Type | New Product 2025 |
| Core Component Warranty | 1 Year |
| Core Component | Track |
| Type | Agricultural Machinery |
| Application | Agriculture |
| Place of Origin | Shandong, China |
| Brand Name | Shandong Rongxu |
| Condition | New |
| Key Selling Point | High Productivity |
