| Key Attributes | |||
| Number of Drive Wheels | 4WD | Engine Brand | Yunnei |
| Rated Power (HP) | 50HP | Application | Garden/Orchard Tractor |
| Type | Wheeled Tractor | Core Components | Gearbox, Engine, Others |
| Warranty Period | 1 Year | Drive Mode | Gear Transmission |
| Core Feature | Multifunctional | Mechanical Test Report | Unavailable |
| Video Factory Inspection | Available | Place of Origin | Shandong, China |
| Weight | 1440 | Brand | Shangdong Rongxu |
| Product Name | RST504 | Engine | 4-Cylinder |
| Colour | Red Blue Green | Wheel Drive | 4 WD |
| PTO Speed | 540/720 R/min | Wheelbase (mm) | 1535 |
| Packaging & Shipping Info | |||

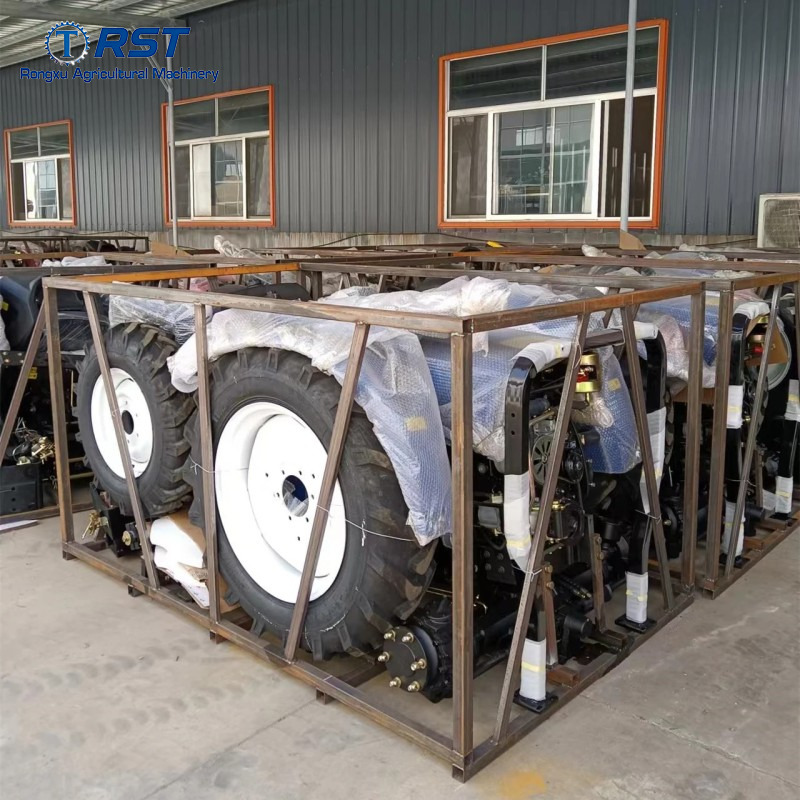

| Packaging Details | Iron Frame | Sales Unit | Single Product |
| Individual Package Size | 2800X1240X2085 cm | Individual Product Gross Weight | 1440.000 kg |
| Delivery Time | ||
| Quantity (sets) | 1 | >1 |
| EST (Days) | 20 | To be determined |
| Customization Options | ||
| Custom Logo +¥14.09/sets (MOQ: 1 sets) | ||
| Custom Machine +¥1,000.01/sets (MOQ: 1 sets) |
| 二、Product Specifications（RST504-S） | ||
| Item | / | RST504-S |
| Diesel Engine | ||
| Type | / | 4-cylinder, Stage II Emission Standard (Mechanical) Yunnei Engine |
| Rated Power/Speed | kW/rpm | 36.8/2400 |
| Transmission | ||
| Clutch | / | Dryer, Single-stage |
| Gear Shift | / | 8F + 2R |
| PTO Speed | r/min | 720 |
| Brake | / | Dry Disc Brake |
| Hydraulics | ||
| Lifting Force (at 610mm) | kN | ≥8.9 (907.8kg) |
| 3-Point Hitch | / | Category 1 |
| Number of Hydraulic Valves | Pair | 1 |
| Tractor Dimensions | ||
| Drive Type | / | 4×4 |
| Length × Width × Height | mm | 2800×1240×2085 |
| Wheelbase | mm | 1535 |
| Minimum Ground Clearance | mm | 130 |
| Minimum Operating Mass (with ROPS) | kg | 1440 |
| Wheel Track (F/R) | mm | 920/960 |
| Tyre Size (F/R) | / | 6.00-12.9-16 |
| Ballast Weight (F/R) | kg | 25/40 |
| ROPS | / | Yes |
| Colour | / | Red, Blue, Green, Orange, Black, etc. |
| Options | ||
| Other Tyres | / | 6.50-12/16.9-20 |
| Trailer Air Brake | / | Available |
| Swinging Drawbar | / | Available |
| Hydraulic Valve | / | Available |
| Hydraulic Multi-Valve | Pair | 2 |
| Clutch & Gear Shift | / | Dual-stage, 8F + 8R |
| PTO speed | / | 540/720 |
| 2WD | / | Front Wheel Track 6.00-14 |
| Instruments | / | Fuel Gauge, Tachometer, Hour Meter |
