| Core Components | Brush | Core Feature | Low noise and low impact on the natural environment |
| Mechanical Test Report | Unavailable | Video Factory Inspection | Available |
| Warranty Period | 1 Year | Brand | Shandong Rongxu |
| Weight (KG) | 240 | Place of Origin | Shandong, China |
| Type | Wheel Trencher | Application | Pushing snow |

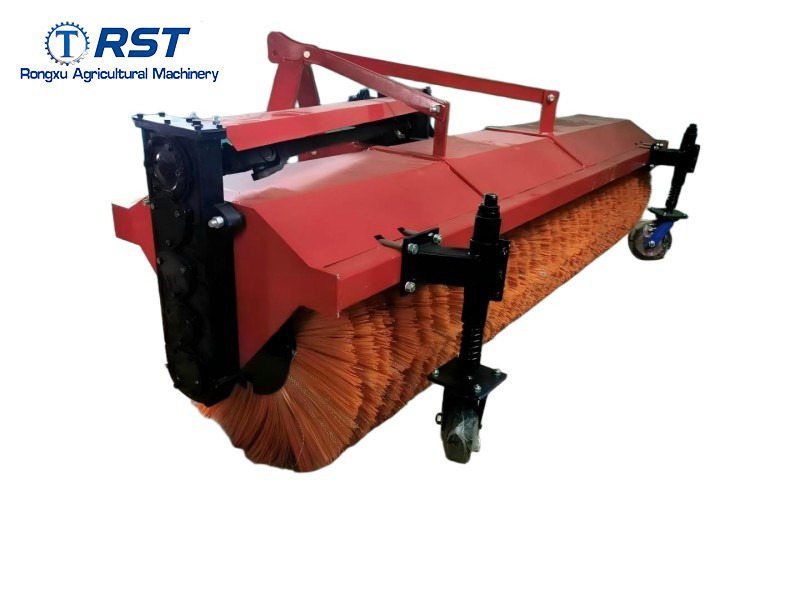

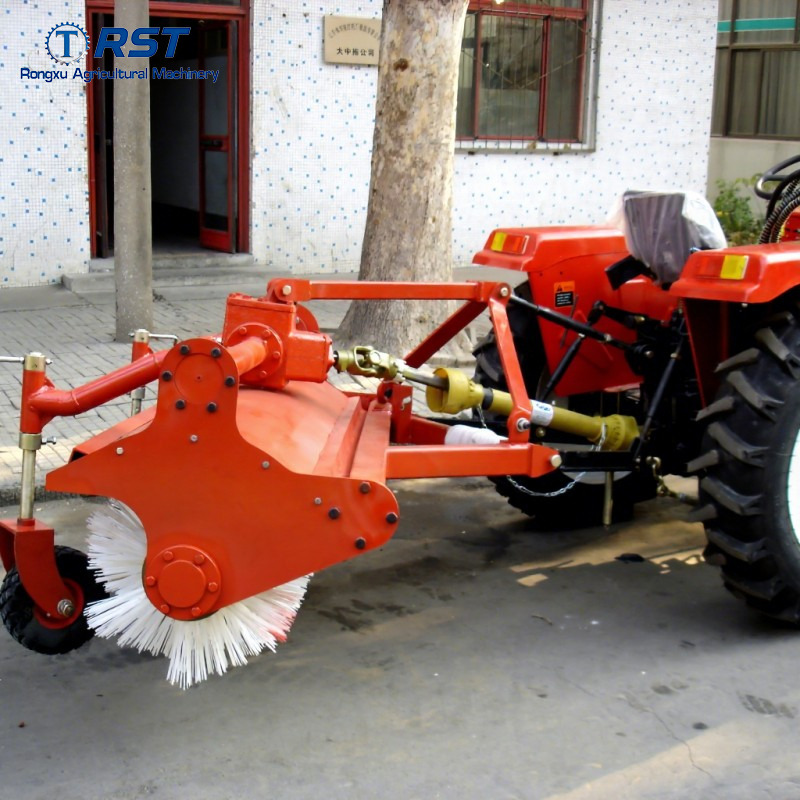

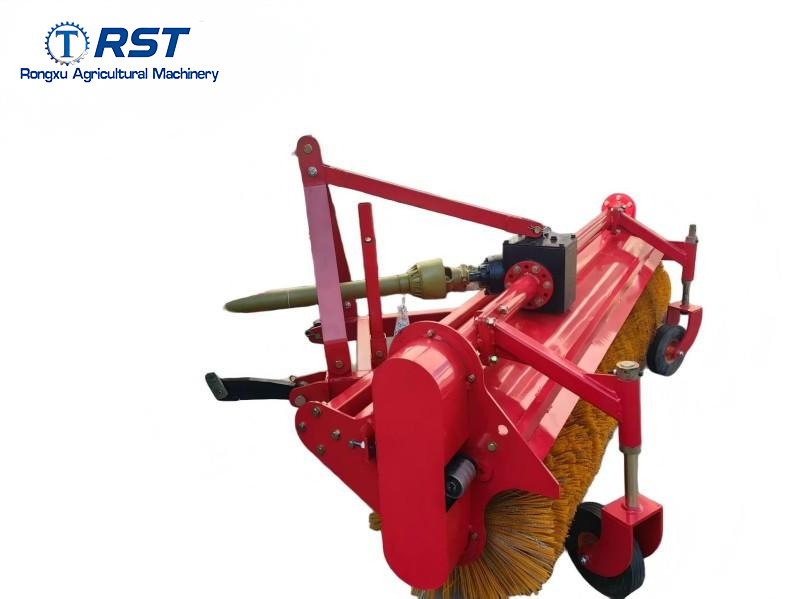

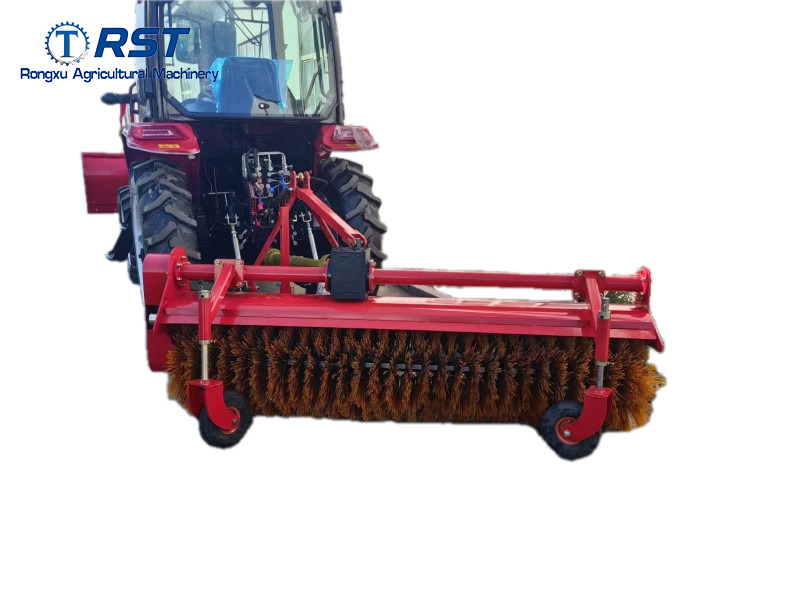

| Product name | snow grader | Items | SWS120 |
| Overall dimension(mm): | 1950*1500*920mm | weight | 240kg |
| Brush width(mm) | 1180 | work efficiency (m2/hour) | 16800 |
| Required tractor power | 20-45 | Connecting method with... | 3 point suspension |
| Driveline specification: | pto drive | Brush diameter | 550mm |
| Packaging & Shipping Information | |||
| Packaging Details | Iron Box | Sales Unit | Single Product |
| Delivery Time | |||
| Quantity (sets) | 1 | >1 | |
| EST (Days) | 15 | To be determined |
| Model | SWS220 | SWS240 | SWS260 | SWS300 |
| Structural Weight | 440kg | 480kg | 520kg | 600kg |
| Overall Dimension(mm) | 185024501150mm | 185026501150mm | 195028501250mm | 220033001250mm |
| Brush Length(mm) | 2180 | 2380 | 2580 | 2980 |
| Work Efficiency (m²/h) | 33000 | 38000 | 39000 | 45000 |
| Required Tractor Power | 80+ | 80+ | 80+ | 100+ |
| Connecting Method with Tractor | 3 point suspension | 3 point suspension | 3 point suspension | 3 point suspension |
| Driveline Specification | PTO Shaft Drive | PTO Shaft Drive | pto drive | pto drive |
| Brush Material | PP/Steel | PP/Steel | PP/steel | PP/steel |
| Brush Axle Material | Seamless Steel | Seamless steel | Seamless steel | Seamless steel |
| Brush Rotation Speed | 180 rpm | 180 rpm | 180 rpm | 180 rpm |
| Brush Diameter | 600mm | 600mm | 800mm | 800mm |
| Item | SWS120 | SWS160 | SWS180 | SWS200 |
| Structural Weight | 240kg | 280kg | 340kg | 380kg |
| Overall Dimension(mm) | 1950*1500*920mm | 1950*1900*920mm | 920*2100*1240mm | 1980*2300*920mm |
| Brush Width(mm) | 1180 | 1580 | 1780 | 1900 |
| Work Efficiency (m²/h) | 16800 | 22100 | 24800 | 30000 |
| Required Tractor Power | 20-45 | 50-75 | 50-100 | 50-100 |
| Connecting Method with Tractor | 3 point suspension | 3 point suspension | 3 point suspension | 3 point suspension |
| Driveline Specification | pto drive | pto drive | pto drive | pto drive |
| Brush Material | PP/steel | PP/steel | PP/steel | PP/steel |
| Brush Axle Material | Seamless steel | Seamless steel | Seamless steel | Seamless steel |
| Brush Rotation Speed | 180 rpm | 180 rpm | 180 rpm | 180rpm |
| Brush Diameter | 550mm | 550mm | 550mm | 550mm |
