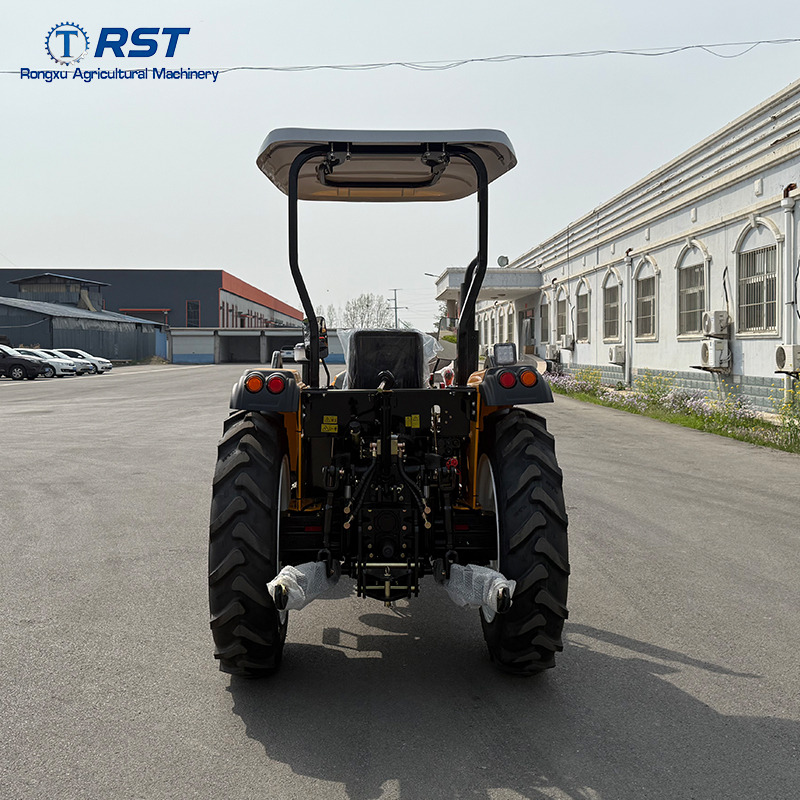

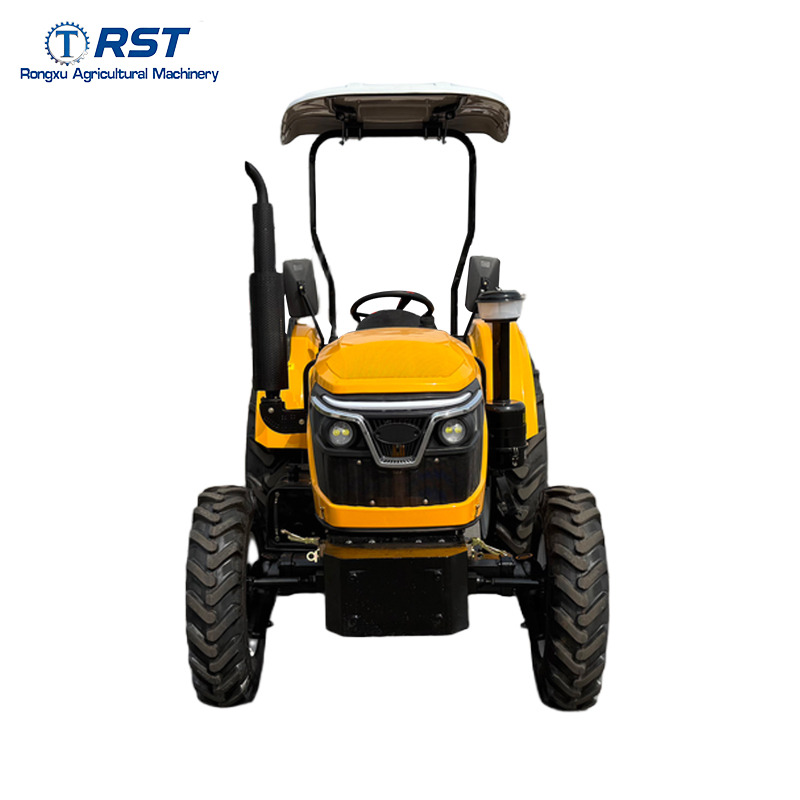

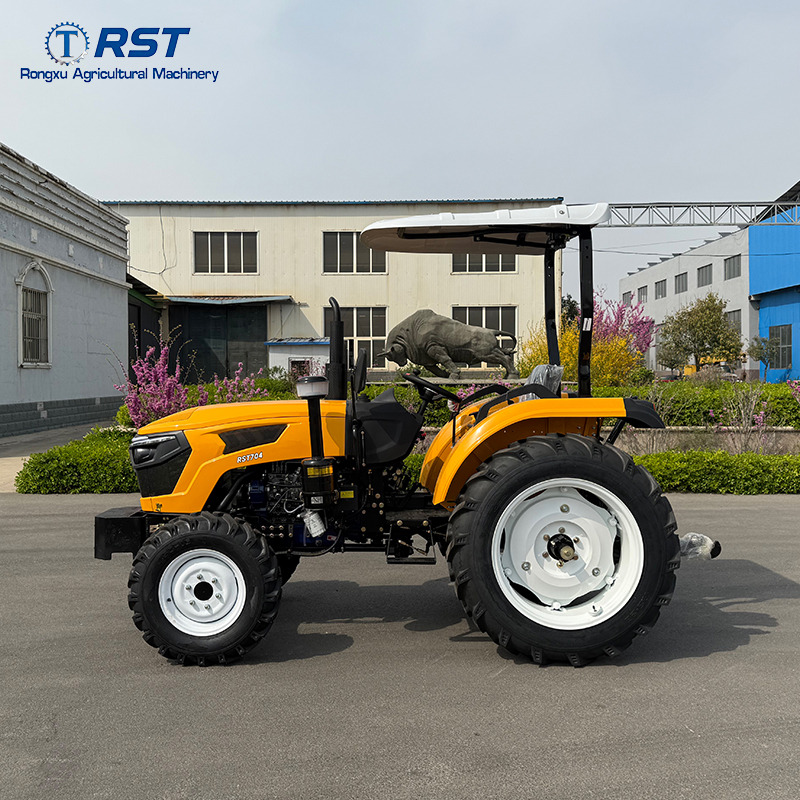

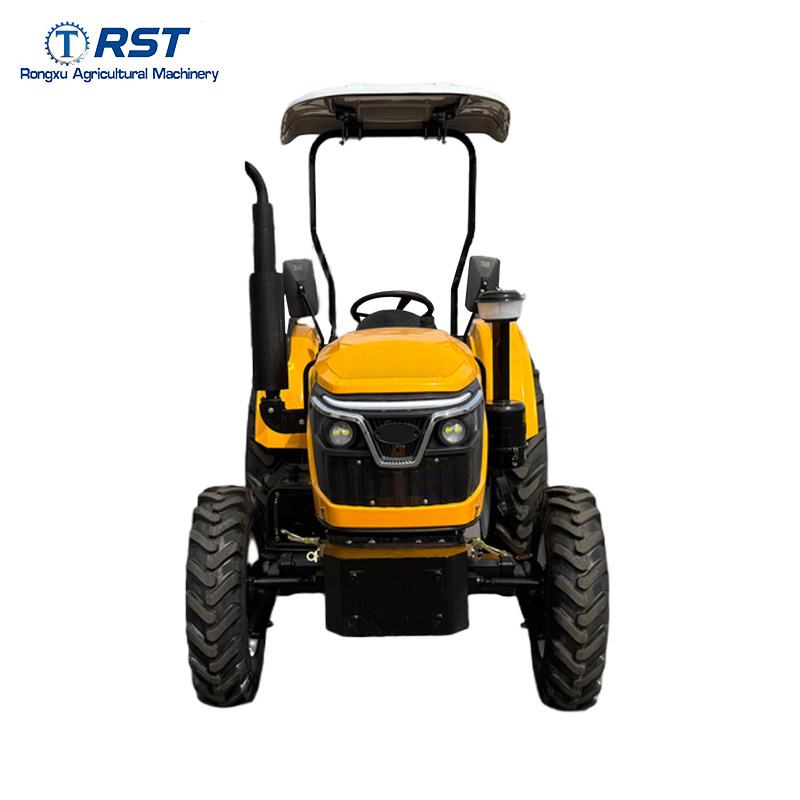

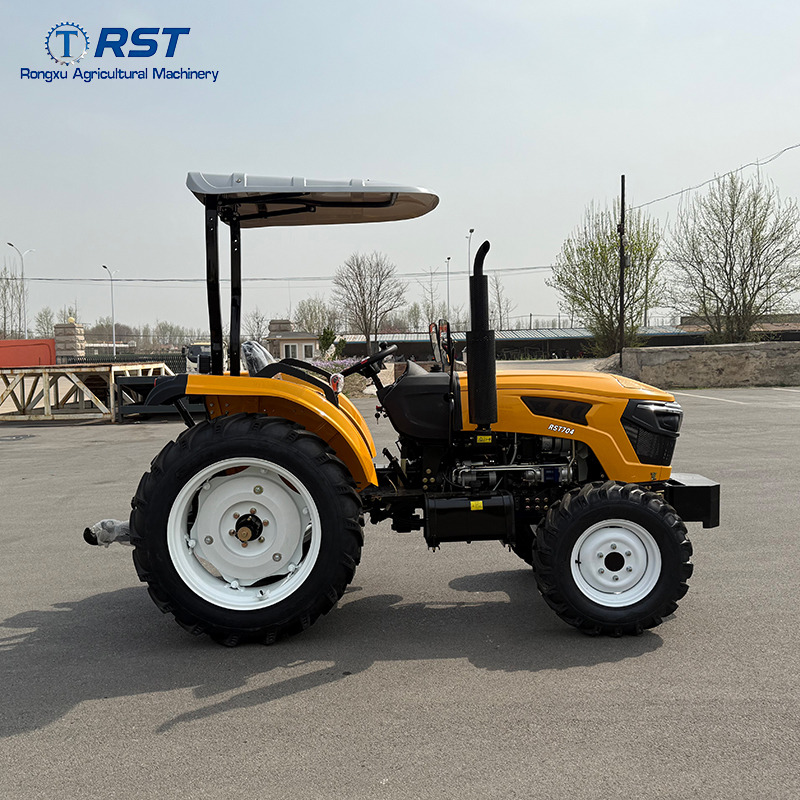

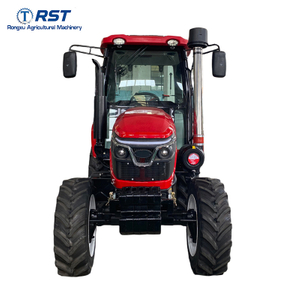

RST404/454/504
shandongrongxu
| Quantity: | |
|---|---|
| Drive Wheels | 4WD |
| Rated Power (HP) | 50HP |
| Type | Wheel Tractor |
| Warranty Period | 1 Year |
| Key Feature | Multi-functional |
| Video Inspection Before Shipment | Available |
| Weight | 1550 (kg) |
| Brand | Shandong Rongxu |
| Model | RST504 |
| Size | Small |
| Front Tire | 7.5-16 |
| Rear Tire | 11.2-28 |
| Dimensions | 3590×1550×2370 (mm) |
| Color | Red, Orange, Blue, Green, Black, etc. |
| Agricultural Attachments | Loader, Excavator, Trailer, Mower & Others |
| Engine Model | Yunnei 4-Cylinder Engine |
| Clutch | Single-Stage Clutch |
| Gear Shift | 8 Forward Gears + 2 Reverse Gears |
| Engine Brand | Yunnei |
| Application | Agricultural Tractor |
| Core Components | Motor, Gearbox, Engine, Gears & Others |
| Drive Mode | Gear Transmission |
| Mechanical Test Report | Available |
| Place of Origin | Shandong, China |
| Quantity (Units) | East USA Delivery Time (Days) |
| 1-1 Unit | 25 |
| More than 1 | To be determined |
| RST404 | ||
| Diesel Engine | - | - |
| Type | / | 4-cylinder, Second Emission Standard (Mechanical) / Yunnei/Xichai Engine |
| Rated Power | kW | 29.4 |
| Rotating Speed | rpm | 2400 |
| Transmission | / | |
| Clutch | / | Dry Friction, Single Stage |
| Gearshift | / | 8F+2R or 8F+8R |
| PTO Spline | / | 35 Rectangular Spline (6 teeth) |
| PTO Speed | r/min | 540/720 |
| Brake | / | Dry Drum Brake |
| Hydraulics | - | - |
| Lifting Force (610mm) | kN | ≥8.4 |
| Three-Point Linkage | / | Category 1 |
| Hydraulic Multi-Valve | Pair | 1 |
| Tractor Dimensions | - | - |
| Drive Type | / | 4×4 |
| Length×Width×Height | mm | 3590×1550×2370 |
| Wheelbase | mm | 1820 |
| Min. Ground Clearance | mm | 355 |
| Min. Operating Weight (with ROPS) | kg | 1550 |
| Tread (F/R) | mm | 1200/1200 |
| Tyre Size (F/R) | / | 7.50-16/11.2-28 |
| Ballast Weight (F/R) | kg | 45.0/45.4 |
| ROPS | / | Yes |
| Color | / | Red, Blue, Green, Orange, Black, etc. |
| Optional Configurations | - | - |
| Dry Field Tyres | / | 6.00-16/9.5-24, 6.50-16/11.2-24 or 7.50-20/12.4-28 |
| Paddy Field Tyres | / | 6.00-12/8.30-20, 7.50-16/11.2-28 or 7.50-16/12.4-28 |
| Air Brake for Trailer | / | Available |
| Swinging Draw Bar | / | Available |
| Sun Canopy | / | Available |
| Cabin | / | Fan, Heated or Air Conditioner |
| Hydraulic Multi-Valve | Pair | 1 or 2 |
| Steering Column | / | Up/Down Adjustable |
| Clutch & Gearshift | / | Dual Stage, 8F+8R |
| Flap Deck | / | Available |
| 2WD | / | Front Tyre: 6.00-16 |
| Instrument | / | Fuel Gauge, Tachometer, Hour Meter, etc. |
| RST454 | ||
| Diesel Engine | - | - |
| Type | / | 4-cylinder, second emission standard (mechanical) Yunnei/Xichai engine |
| Rated Power | kW | 33 |
| Rotating Speed | rpm | 2400 |
| Transmission | / | - |
| Clutch | / | Dry-friction, Single Stage |
| Gearshift | / | 8F+2R or 8F+8R |
| PTO Spline | / | 35 Rectangle Spline with 6 teeth |
| PTO Speed | r/min | 540/720 |
| Brake | / | dry drum brake |
| Hydraulic | - | - |
| Lifting Force (610mm) | kN | ≥8.4 |
| Three-point linkage | / | Category 1 |
| Number of hydraulic multi-way valves | pair | 1 |
| Tractor dimensions | - | - |
| Drive type | / | 4×4 |
| Length×Width×Height | mm | 3590×1550×2370 |
| Wheelbase | mm | 1820 |
| Min. Ground Clearance | mm | 355 |
| Minimum use quality (with ROPS) | kg | 1550 |
| Tread (F/R) | mm | 1200/1200 |
| Tyre Size (F/R) | / | 7.50-16/11.2-28 |
| Ballast weight (F/R) | kg | 45.0/45.4 |
| ROPS | / | Yes |
| Color | / | Red, Blue, Green, Orange, Black, etc. |
| Options | - | - |
| Dry Farmland Tyres | / | 6.00-16/9.5-24, 6.50-16/11.2-24 or 7.50-20/12.4-28 |
| Paddy Field Tyres | / | 6.00-12/8.30-20, 7.50-16/11.2-28 or 7.50-16/12.4-28 |
| Air Brake for trailer | / | Available |
| Swinging Draw Bar | / | Available |
| Sun Canopy | / | Available |
| Cabin | / | Fan, Heated or Air conditioner |
| Hydraulic Multi-Way Valve | parts | 1 or 2 |
| Steering column | / | UP/DOWN adjustable |
| Clutch and Gearshift | / | Dual Stage, 8F+8R |
| Flap Deck | / | Available |
| 2WD | / | Front tyre 6.00-16 |
| Instrument | / | Fuel Gauge, Tachometer, Hour Meter, etc. |
| RST504 | ||
| Diesel Engine | / | 4-cylinder, Second Emission Standard (Mechanical) / Yunnei/Xichai Engine |
| Rated Power | kW | 38.8/29.4/33 |
| Rotating Speed | rpm | 2400 |
| Transmission | / | / |
| Clutch | / | Dry Friction, Single Stage |
| Gearshift | / | 8 Forward Gears + 2 Reverse Gears / 8 Forward Gears + 8 Reverse Gears |
| PTO Spline | / | 35 Rectangular Spline with 6 Teeth |
| PTO Speed | rpm | 540/720/540/1000 |
| Brake | / | Dry Drum Brake |
| Hydraulics | / | / |
| Lifting Force (610mm) | kN | ≥8.4 |
| Three-Point Linkage | / | Category 1 |
| Hydraulic Multi-Valve | Pair | 2 or 1 |
| Tractor Dimensions | / | 4×4 |
| Drive Type | / | 4×4 |
| Length × Width × Height | mm | 3590×1550×2370 |
| Wheelbase | mm | 1820 |
| Minimum Ground Clearance | mm | 355 |
| Minimum Weight (with ROPS) | kg | 1550 |
| Wheel Tread (F/R) | mm | 1200/1200 |
| Tire Size (F/R) | / | 7.50-16/11.2-28 |
| Ballast Weight (F/R) | kg | 45/45.4 |
| ROPS | / | Yes |
| Color | / | Red, Blue, Green, Orange, Black, etc. |
| Dry Field Tires | / | 6.0-16/9.5-24, 6.50-16/11.2-24 or 7.50-20/12.4-28 |
| Paddy Field Tires | / | 6.00-12/8.3-20, 7.50-16/11.2-28 or 7.50-16/12.4-28 |
| Air Brake for Trailer | / | Available |
| Swinging Drawbar | / | Available |
| Sun Canopy | / | Available |
| Cabin | / | Heated/Air-Conditioned Fan |
| Hydraulic Multi-Valve | Pair | 1 or 2 |
| Steering Column | / | Up/Down Adjustable |
| Flat Deck | / | Available |
| 2WD Mode | / | Front Tire: 6.00-16 |
| Instrument | / | Fuel Gauge, Tachometer, Hour Meter, etc. |
